Features
Die-casting aluminium housing，Ultra white tempered glass,304 Stainless Steel for external nuts and bolts
Surface treated with anti-ultravilet powder coating, more than 1000h salt spray test.

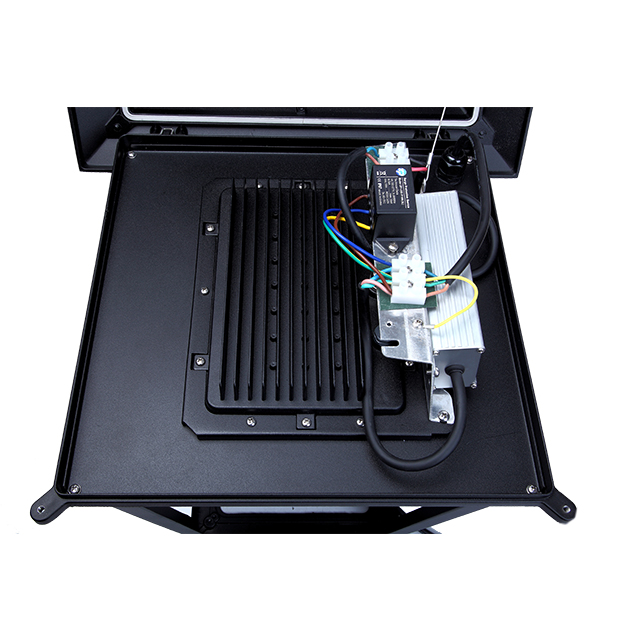

Using LED module, easy to replace the light source
High Effciency LED technology, up to 150 lm/W, with No photo-biological risk
Various of optical distributions options of high transmittence lens, available in TypeⅡ，TypeⅢ and TypeⅣ
0-10V/PWM/DALI/Programmed could be choosen
Extra surge protection device， up to 20KV
Support Smart Control，compatible with remote control syestem.
Application
Urban street
Optical distributions
For 5050 Chips
For 3030 Chips
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Specifications
| Model | Power(W) | Optics | Size | Weight |
| GAs20 | 20 | Type II/III/IV | 300*300*655 | 6 |
| GAs30 | 30 | Type II/III/IV | 300*300*655 | 6 |
| GAs40 | 40 | Type II/III/IV | 300*300*655 | 6 |
| GAs60 | 60 | Type II/III/IV | 300*300*655 | 6 |
| GAl30 | 30 | Type II/III/IV | 425*425*816 | 9 |
| GAl40 | 40 | Type II/III/IV425 | 425*425*816 | 9 |
| GAl60 | 60 | Type II/III/IV | 425*425*816 | 9 |
| GAl80 | 80 | Type II/III/IV | 425*425*816 | 9 |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

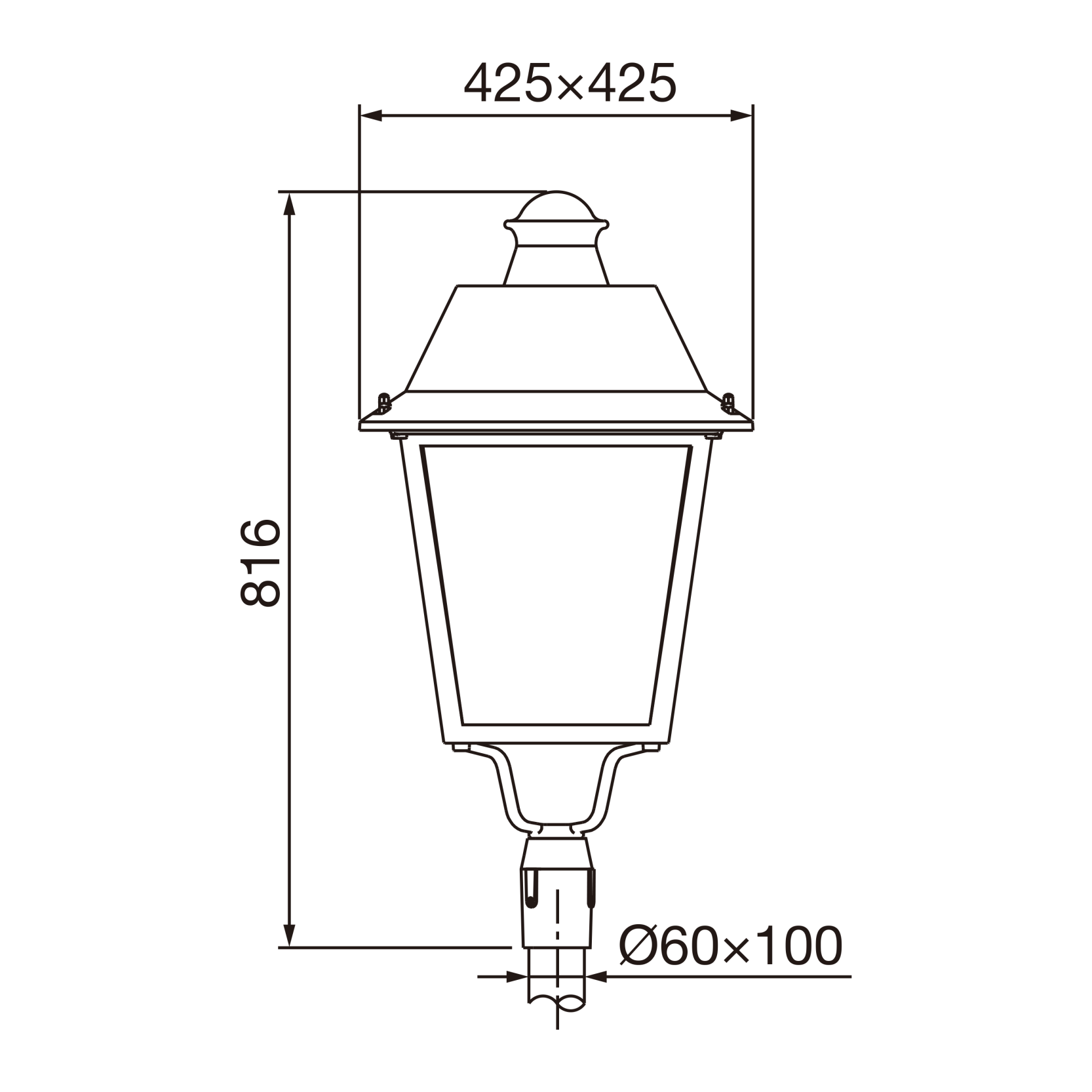

Dimension
