Features

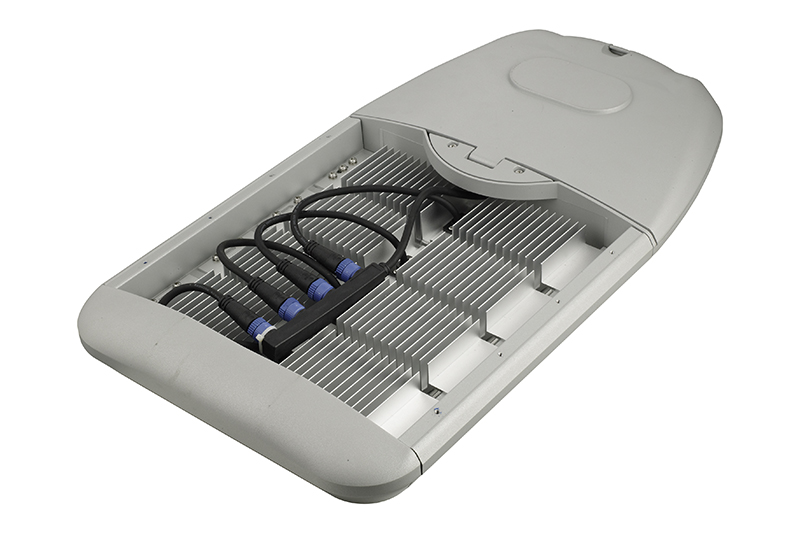

Design for LED Module, easy combination
Same appearance, two different choices, Die-casting with aluminium profile or entire die-casting housing
Surface treated with anti-ultravilet powder coating, more than 1000h salt spray test.
High Effciency LED technology, up to 160 lm/W, with No photo-biological risk
0-10V/PWM/DALI/Programmed could be choosen
Extra surge protection device， up to 20KV
Support Smart Control，compatible with remote control syestem.
Application
Urban street

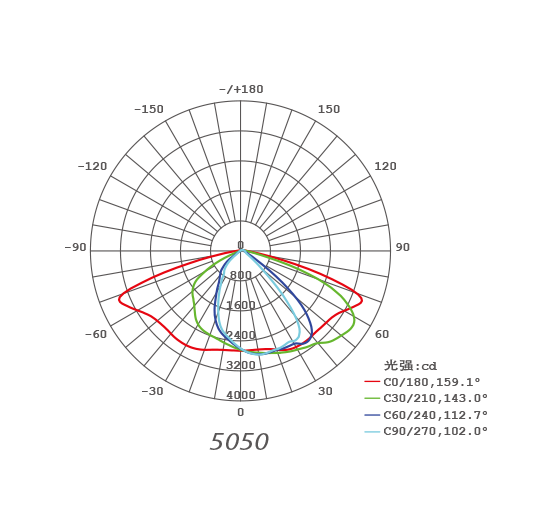

Optical distributions
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Specifications
| Model | Power(W) | Optics | Size |
| MAD1C2 | 30-100 | Type II/III | 563*356*122mm |
| MAD1C3 | 90-150 | Type II/III | 648*356*122mm |
| MAD1C4 | 150-200 | Type II/III | 730*356*122mm |
| MAD1C5 | 240-300 | Type II/III | 813*356*122mm |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

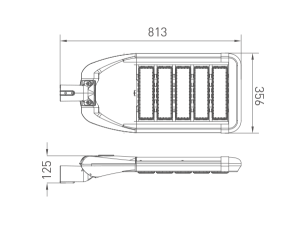

Dimension
