Features

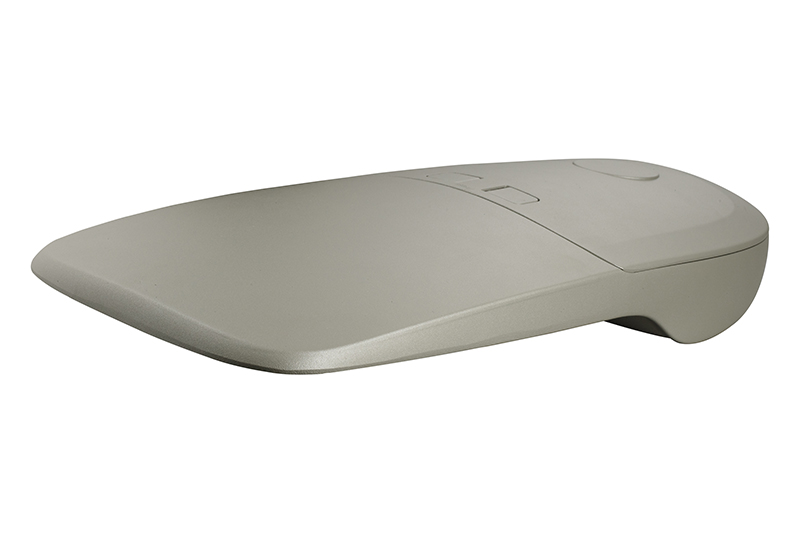

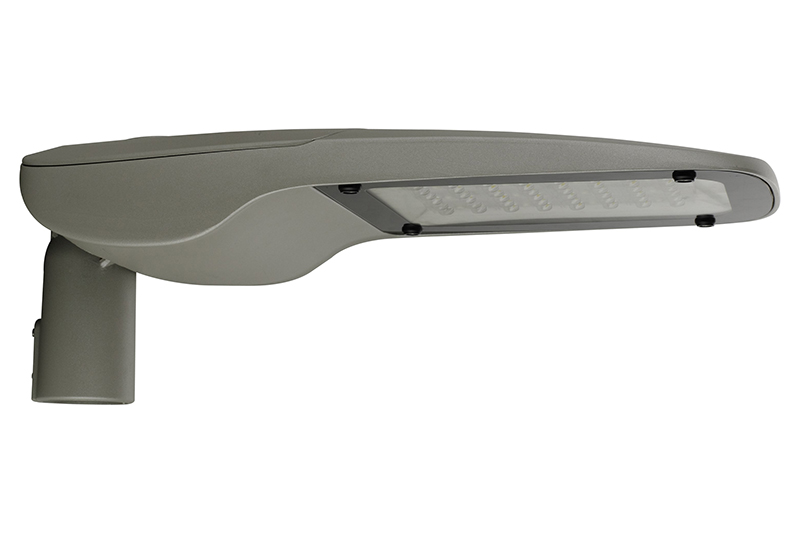

Design with clean-cut Streamline

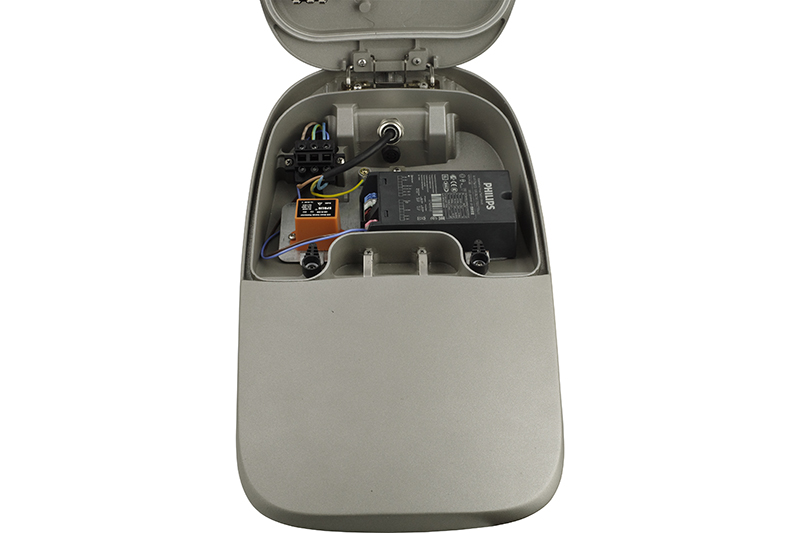

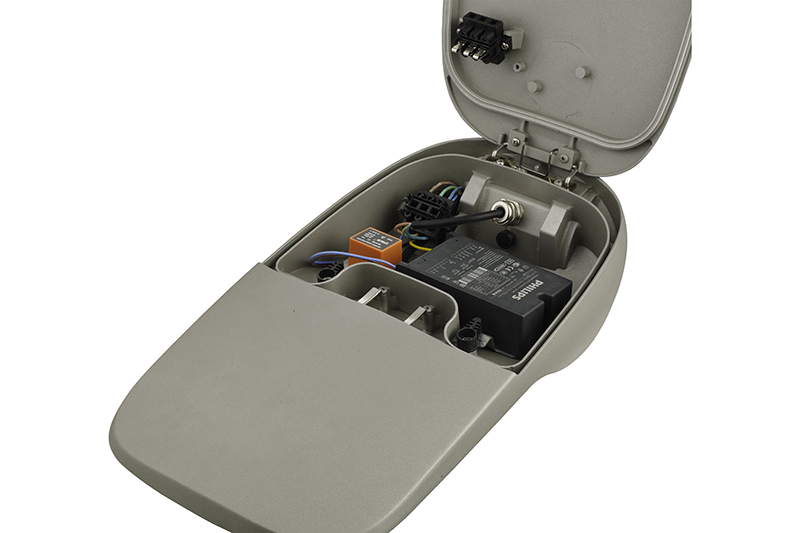

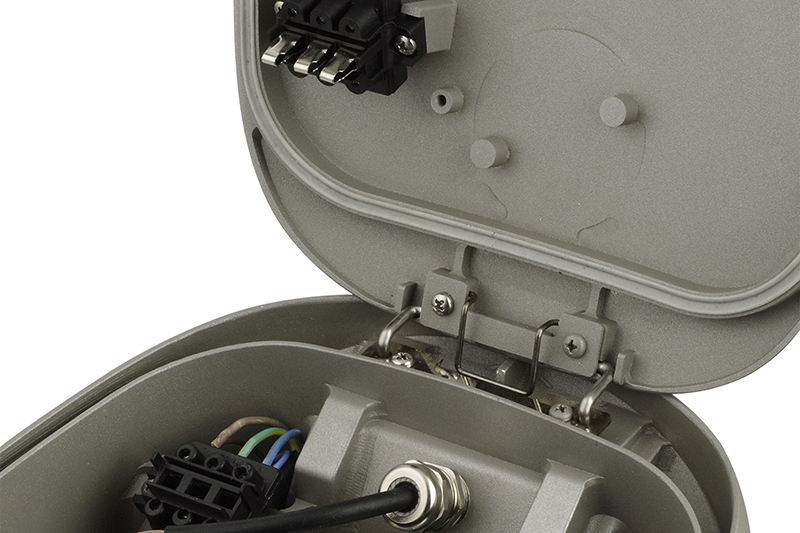

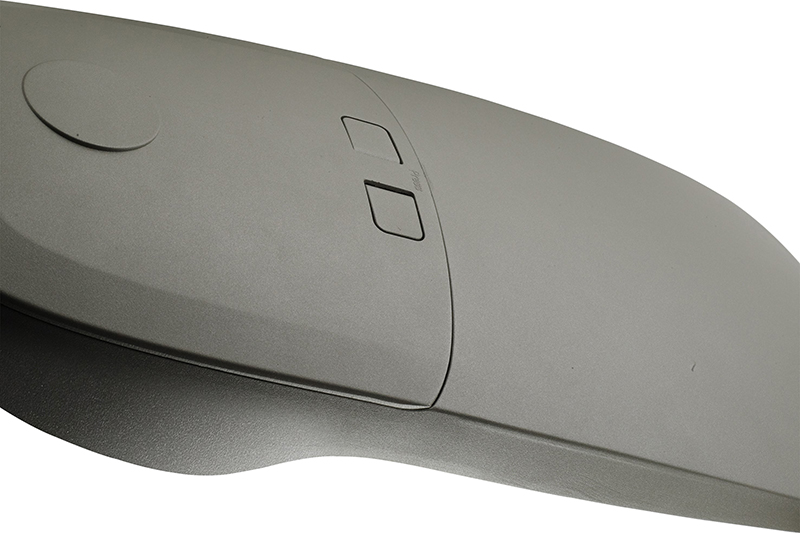

Dual button design, easy to open the electrical box，and automatically cut-off power when open it
Easy to maintenance, Toolless replacement of driver panel.
Die-casting aluminium housing，Ultra white tempered glass,304 Stainless Steel for external nuts and bolts
Surface treated with anti-ultravilet powder coating, more than 1000h salt spray test.
High Effciency LED technology, up to 150 lm/W, with No photo-biological risk
Various of optical distributions options of high transmittence lens, available in TypeⅡ，TypeⅢ and TypeⅣ
0-10V/PWM/DALI/Programmed could be choosen
Extra surge protection device， up to 20KV
Support Smart Control，compatible with remote control syestem.
Complies with the Zhage Standard
Application
Urban street

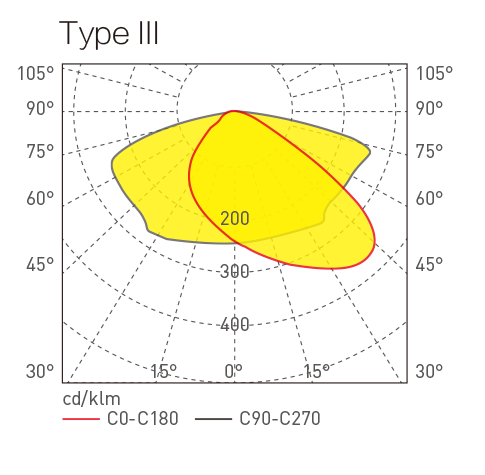

Optical distributions
For 5050 Chips
For 3030 Chips
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Specifications
| Model | Power(W) | Optics | Size | Weight |
| RBs30 | 30 | Type II/III/IV | 570*260*90mm | 5.4 |
| RBs40 | 40 | Type II/III/IV | 570*260*90mm | 5.4 |
| RBs60 | 60 | Type II/III/IV | 570*260*90mm | 5.4 |
| RBs80 | 80 | Type II/III/IV | 570*260*90mm | 5.4 |
| RBm100 | 100 | Type II/III/IV | 640*290*105mm | 7.6 |
| RBm120 | 120 | Type II/III/IV | 640*290*105mm | 7.6 |
| RBm150 | 150 | Type II/III/IV | 640*290*105mm | 7.6 |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

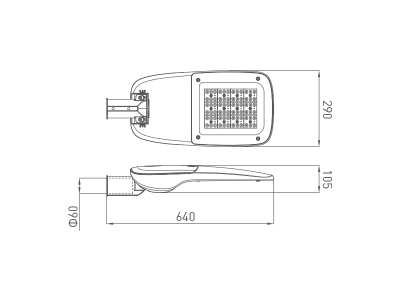

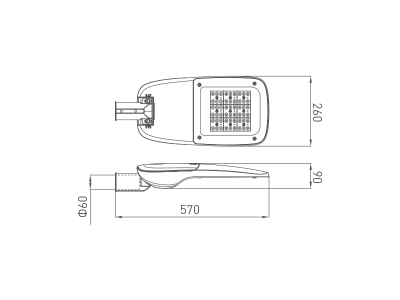

Dimension
