Features
Design with various mounting，to keep a same style in different situation
Die-casting aluminium housing，Ultra white tempered glass,304 Stainless Steel for external nuts and bolts
Surface treated with anti-ultravilet powder coating, more than 1000h salt spray test.
High Effciency LED technology, up to 150 lm/W, with No photo-biological risk
Various of optical distributions options of high transmittence lens, available in TypeⅡ，TypeⅢ and TypeⅣ
0-10V/PWM/DALI/Programmed could be choosen
Extra surge protection device， up to 20KV
Support Smart Control，compatible with remote control syestem.
Application
Urban street
Optical distributions
For 5050 Chips
For 3030 Chips
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Specifications
| Model | Power(W) | Optics | Size | Weight |
| GBH40 | 40 | Type II/III/IV | φ490*91 | 10 |
| GBH60 | 60 | Type II/III/IV | φ490*91 | 10 |
| GBH80 | 80 | Type II/III/IV | φ490*91 | 10 |
| GBS40 | 40 | Type II/III/IV | φ490*130 | 8 |
| GBS60 | 60 | Type II/III/IV | φ490*130 | 8 |
| GBS80 | 80 | Type II/III/IV | φ490*130 | 8 |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

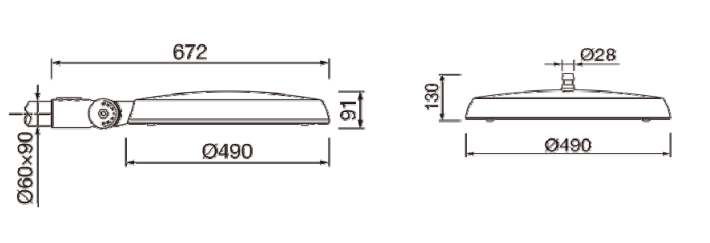

Dimension
